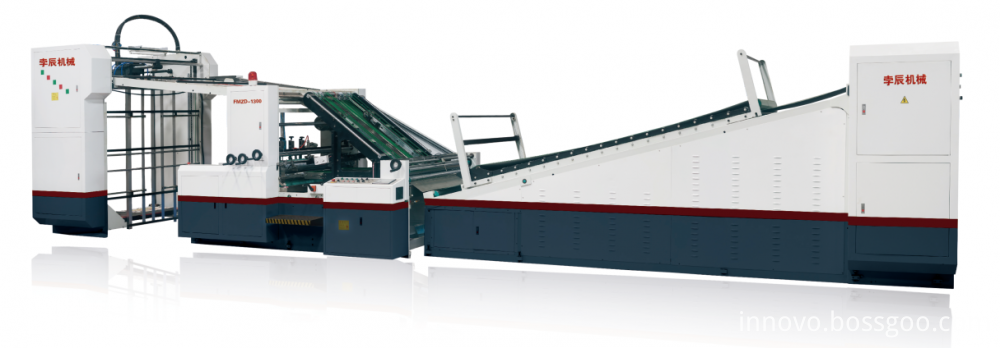

Automatic High Speed Intelligence Laminator
|Delivery Time:||30 Days|
|Place of Origin:||China(Zhejiang)|
Model No.: FMZD-1300
The series of products are the machine partition manufacturing all the large-scale machining center processing completed, to ensure the accuracy of each station, to ensure the running of equipment is more stable.
Paper feeding mechanism: the configuration of high-speed special feeder head, regardless of thick paper or thin paper, to ensure high speed, smooth.
Paper lifter: equipped with full speed feeder, using high strength worm reducer, ensure the instant speed stability.
Tissue paper table: the E type double gap and unique design, paper to be produced can be directly pushed into by Hand forklift, shortened codes paper time, improve efficiency.
Bottom paper system: the servo motor control system, high sensitivity, high speed, to ensure paper-out smooth, no paper jamming and other characteristics.
Bottom paper adsorption system: Adopt the frequency conversion control and cooperate with the electromagnetic valve to switch quickly, ensure the bottom paper completely adsorption, and the operation is simple.
Gluing wheel: Thickened plating steel wheel, Surface fine grinding, glue quantity can be adjusted to 8G/M2, ensure thin and thick paper glue evenly.
Glue added: Adopt liquid level automatic control, ensure the glue automatically added, ensure production continuous.
Paper separation: for high-speed operation, adopting separate claws, making paper detached effectively from the glue wheel.
Laminating position: Adopt the front positioning mode, the left and right sides all have side gauge, ensure the laminating precision in high speed.
Transmission system: using machine gauge synchronous belt transmission imported from USA. Ensure the transmission accuracy, smooth, low noise.
Operating system: the man-machine touch screen for operation center and PLC connection will be warned, fault detection, abnormal condition and operation speed of the information display on the screen at a glance, and detection and maintenance, recording, online real-time view in a timely manner, to embody the efficiency.
High pressure blast 4HP
Sheet fed paper at the bottom of the sheet fed
Strong wind belt out of the end of the type of paper
Pit cardboard output using servo motor control system, high sensitivity, high speed and other characteristics, it can finish the required action in 0.1 second, living up to work with high speed without jamming and make paper move more smooth
Wind control, frequency control the volume size, without the traditional manual adjustment, with the United States Patent import parts agile opening and closing, use more perfect.
Fitting the host paper alignment system.
1HP automatic glue supply system of South Korean pump adhesive pump.
Coated steel wheel with thick plated anilox roller. Fine surface, twice grinding, the accuracy can reached up to ±0.005mm, equipped with high precision glue wheel. The glue quantity can be adjusted to 8G/M2. Making thin and thick paper glue evenly. Suitable for type ABCEF and 300G cardboard, gray paper and paper board.
Paper positioning: fan make paper adsorbed on the conveyor belt, using adhesive tape and block gauge the speed difference of the paper against the former syndiospecific, both sides side syndiospecific paper righting after, at the end of the paper and tissues also to gauge fit for paper lamination without leaving gauge, can guarantee the fitting precision.
All machinery wallboard uniform, is composed of large processing center processing, ensure the machining accuracy of the position of each processing machine adopts the United States amounted to machine timing synchronous belt transmission, stable transmission, low noise, motor and accessories for domestic and foreign well-known brand products, higher efficiency, low fault rate, long life and other characteristics.
Use the man-machine interface, alarm sound and light display PLC within each connected to the work, can automatically detect the production status, the abnormal situation and records, and can view online machine unusual, timely processing of related issues, according to European CE standard elaborate design, the production of fine, the whole machine operation and safety of perfect combined with.
Common paper tissue paper, cardboard, copperplate paper, gray board, plate paper, corrugated paper B/E/F, three layer, five layer board tile paper mounted. Grey Board laminating, cardboard laminating, wine etc..
Max sheet size
Min sheet size
Thickness of upper paper
Thickness of bottom paper
Max feeding speed
